| SPECIFICITIONS |
| S. No |
Specifications |

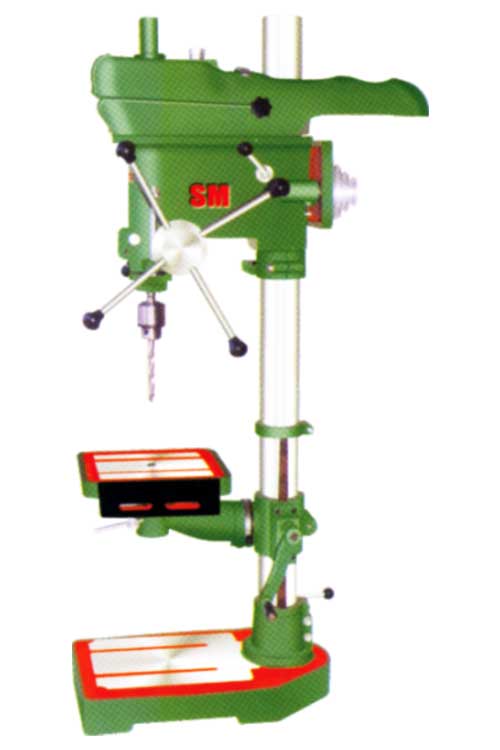

SMB 1 - 2 |
| 1. |
Drilling Capacity |
20 |
| 2. |
No of spindle speeds |
8 |
| 3. |
Range of speed |
86 to 3326 |
| 4. |
Distance Between Spindle Center & Columm Face |
215 |
| 5. |
Max. Distance of spindle to base |
710 |
| 6. |
Max. Distance of spindle to work table |
460 |
| 7. |
Table Travel |
250 |
| 8. |
Spindle Travel |
125 |
| 9. |
Table Size |
270*270 |
| 10. |
Base Size |
500*350 |
| 11. |
Working surface of base |
275*300 |
| 12. |
Column Diameter |
75 |
| 13. |
Columm Height |
800 |
| 14 |
Spindle Nose Bore |
MT - 2 |
| 15. |
Motor Recommended |
0.75KW (1 H.P.) 1440 RPM |
| 16. |
V-Belt Size |
A - 43 |
| 17. |
Weight of Machine(appx) |
100 KG |
|
| |
|
 |
|
|
